Cartoning Machine GD-TCE400S

Cartoning Machine A cartoning machine is a combination of air, electrical, light and high-tech equipment configured to a computer to control and regulate its operation.

Designed to streamline your packaging process, our automatic cartoning machine can handle a wide range of products, from pharmaceuticals and cosmetics to food and beverages.

Whether you're looking to boost efficiency, reduce labor costs, or improve product quality, the automatic cartoning machine is the perfect solution.

What is Carton Packing Machine?

The carton packing machine is the equipment that can be used for making special carton packages for different products, such as bakery food, snack food, frozen food, medicine, and any other solid product. Automatic cartoning machine has played an important deal for many businesses.

A high-quality cartoning packaging protects the products from damage, especially under the harsh environment, making them easy to transport.

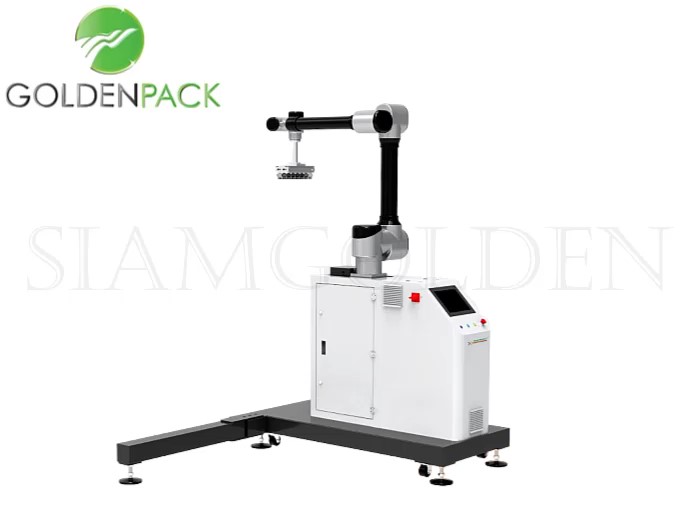

Soontrue provides various cartoning machines such as case erector machine, robotic case packer and other type of carton packaging machine to meet yourrequirements.

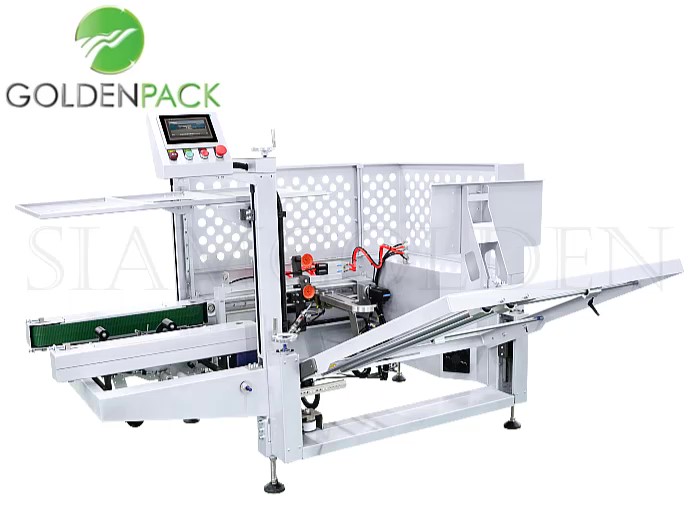

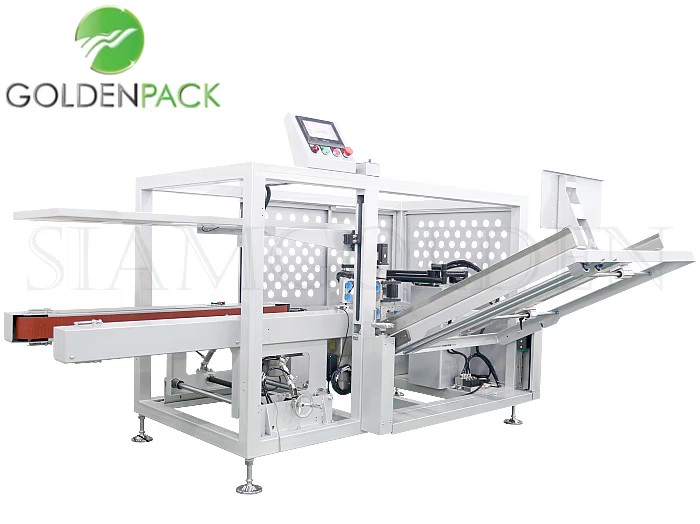

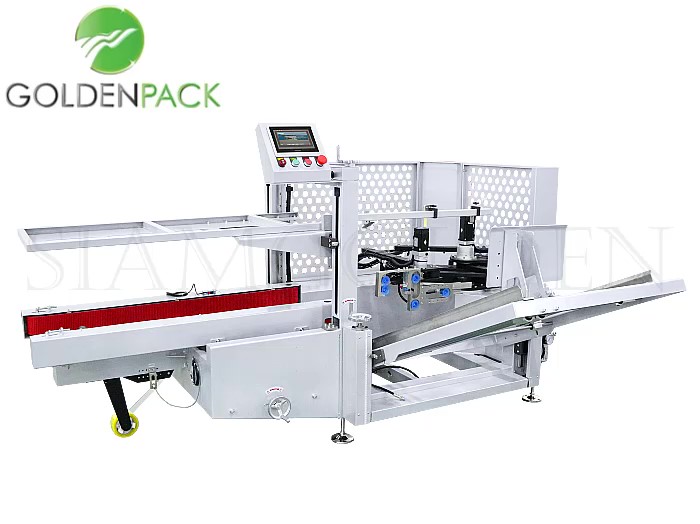

Case Erector Machine

GD case packing machine is controlled by Inovance controller and servos. Reasonable design and fine processing of the whole machine, and famous electric components makes the machine stable and wide application. The whole machine is combined with in-feeder, tissue pile up device, and filling conveyor among which the pile up device is controlled by servos.
1. The machine can be equipped with side feeding unit and vertical feeding unit for different requirement.
2. The machine has precise case sending and will alarm if the cartons are missing.
3. When the machine stops, the machine will stop the conveyors for operator checking. The machine has overload alarm and can be reset by manually solve the overload problem and press the reset button to make the servo control system to back to the origin point(slowly back)

Application:

Mainy used for cartoning bakery food, snack foo, frozen food, medicine, and any other solid product automatically.

Description

◆ Mechanized Carton Store (Step Advance by Pneumatic Cylinder)
◆ Pneumatic cylinders for moving and forming crates
◆ Store capacity up to 150 cartons depending on the thickness
◆ Suction cartons by suction cups
◆ The colored lights indicate the state of the machine
◆ Closure of lower flaps and adhesive application, width 50 mm
◆ Centralized touch screen control panel with optical function indicator
◆ Store bottom alarm, end / adhesive break alarm, accumulation /
◆ timing management of the boxes at the exit.  / Safety cover

Features:

◆ Servo control

◆ Robotic case erecting

◆ Carbon steel machine body

◆ External compressed air required

◆ High-capacity powered case magazine.

◆ Small footprint design minimizes floor space.

◆ Low case & low tape alarms with stack light assure continuous operation.

◆ Safety interlocked guarding restricts access to moving parts.

◆ 2 case per minute operation for medium speed packaging lines.

◆ CE international certification.

◆ Alarm when lack tape or case.

Specification

◆ Model                        : GDDCE500M           //    GDDCE650L

◆ Carton size range       : L 280-500 mm       //     L 280-660 mm

◆ Carton size range       : W 150-400 mm       //     W 150-500 mm

◆ Carton size range       : H 150-400mm       //     H 150-500 mm

◆ Cartioning speed        : 5-15 cases/min.     //     5-15 cases/min.

◆ General power (KW)   : 1KW                   //       1KW

◆ Power supply type      : 220V 1Ph 50Hz      //     220V 1Ph 50Hz

◆ Machine weight          : 320Kg                   //     450Kg

◆ Machine dimensions   : L 1950 mm            //     L 2300 mm             /

◆ Machine dimensions   : W 1800 mm           //     W 2000 mm           //       W 2900 mm

◆ Machine dimensions   : H 1400 mm           //      H 1570 mm           //       H 1600 mm

Siamgolden case erectors are the answer to virtually every case erecting requirement. Whether you need to erect 10 cases per minute or 60 cases per minute, Siamgolden has the solution for you. Our case erectors are engineered and manufactured for durability and economical use under the most challenging production conditions and like every other.

Siamgolden machine, our case erectors are backed by our industry-leading parts & service network that responds to customer needs 24-hours a day, 7-days a week.

In addition, working with Siamgolden horizontal packaging machine, vertical packing machine, pre-made bag packaging machine, box cartoning machine and other packaging machinery, it can effectively improve the automation of the entire production line and reduce labor costs.
